Outdoor Prefabricated Substation(European Style)

It is suitable for single-phase and three-phase circuits with a frequency of 50Hz, a rated voltage of less than 500V, and a load current of not more than 100A.

Keywords:

Box-type Substation

Classification:

Product Introduction

It is widely used in urban power grid transformation, residential areas, high-rise buildings, industrial and mining, hotels, shopping malls, airports, railways, oil fields, docks, expressways, and temporary power facilities and other indoor and outdoor venues.

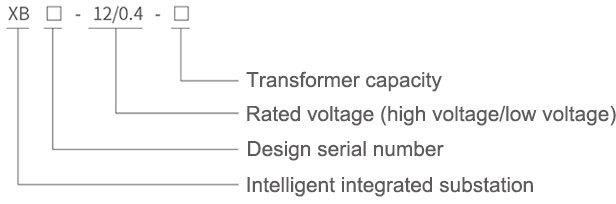

Model Meaning

huaxing

Product Features

● The trinity of high-voltage switchgear, transformers, and low-voltage switchgear has strong complete sets；

● Perfect high and low voltage protection, safe and reliable operation, and simple maintenance；

● It occupies a small area, saves investment, has a short production cycle, and is easy to move；

● Flexible and diverse wiring schemes；

● Unique structure: unique honeycomb structure, double-layer (composite board) shell, strong heat insulation, heat dissipation and ventilation, beautiful appearance, high protection level, shell materials are stainless steel, alloy, aluminum alloy, cold-rolled sheet, color steel plate optional；

● Various types: universal type, villa type, compact type and other styles；

● The high-voltage ring network cabinet can be equipped with a network automation terminal (FTU) to achieve reliable detection of short-circuit and single-phase ground faults, and has a "four-remote” function to facilitate the automation upgrade of the distribution network.

Working Conditions

● The altitude does not exceed 1000m;

● Ambient temperature: -25℃～+40℃;

● Relative humidity: the daily average value is not greater than 95%, and the monthly average value is not greater than 90%;

● Installation site: There is no danger of fire, explosion, conductive dust, chemically corrosive gases and severe vibration. If the above conditions are exceeded, the user can negotiate with our company.
