Series Mining General Low-voltage Switch Cabinet

Product Introduction

General-purpose low-voltage switch cabinet for mining GKD: The main performance of the product: rated voltage U40V/690V/400V, rated current below 2500A, protection level IP43.The products comply with GB/T12173-2008 "General Electrical Equipment for Mining" and GB/T7251.12-2013 "Low-voltage switchgear and Control Equipment". The switch cabinet adopts a modular general cabinet structure, and the frame adopts 8MF cold-formed steel. The parts of the general cabinet are designed according to modularity, with a high general coefficient, flexible installation of components, and reasonable cabinet structure design, which is conducive to the heat dissipation of components and improves the thermal stability of the cabinet. The size of the cabinet considers factors such as mine transportation, installation, small footprint, and easy maintenance. Applicability and economy All very good.The main configuration of the product: The cabinet is mainly composed of isolation switches, circuit breakers, contactors, transformers, instruments, etc., and can also be equipped with leakage monitoring devices, automatic fire extinguishing devices, automatic dehumidification devices, etc. according to user needs.

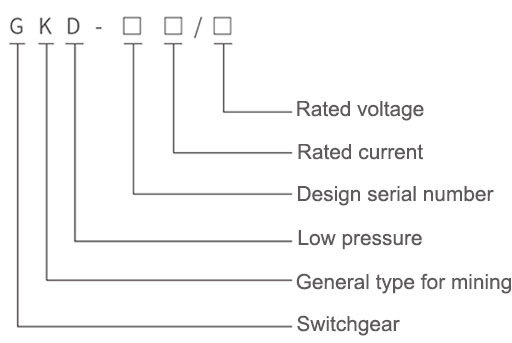

Composition and Meaning of Product Model

Environmental Conditions

Normal working conditions

Normal working conditions should be within the scope of the following provisions：

a) The upper limit of the surrounding air temperature is +40℃, and the lower limit is -20℃.

b) Altitude: no more than 2000m.

C) The average relative humidity of the surrounding air is not greater than 95% (20℃±5℃)

d) In a gas or steam environment that does not destroy the insulation.

e) Fixed installation and use.

f) In a storage room or operating room without dripping water and dust immersion.

g) In the central control room or control room.

Special working conditions

The working conditions that do not meet the requirements of 2.1 are special working conditions and are manufactured in accordance with the agreement signed with the user.

Main Technical Parameters

The main rated parameters of the product are as follows：

a) Input voltage: 380VAC

b) Rated current：250、400、630、1000、1600、2000、2500

C) Rated frequency: 50Hz；
